A headphone magnet is the core component inside every dynamic driver that converts electrical audio signals into physical sound waves. Without a magnet, there is no movement, no sound, and no audio experience. The magnet creates a static magnetic field; when alternating current from your audio source passes through the voice coil sitting inside that field, the coil — and the diaphragm attached to it — vibrates at the precise frequencies encoded in the signal, producing sound.

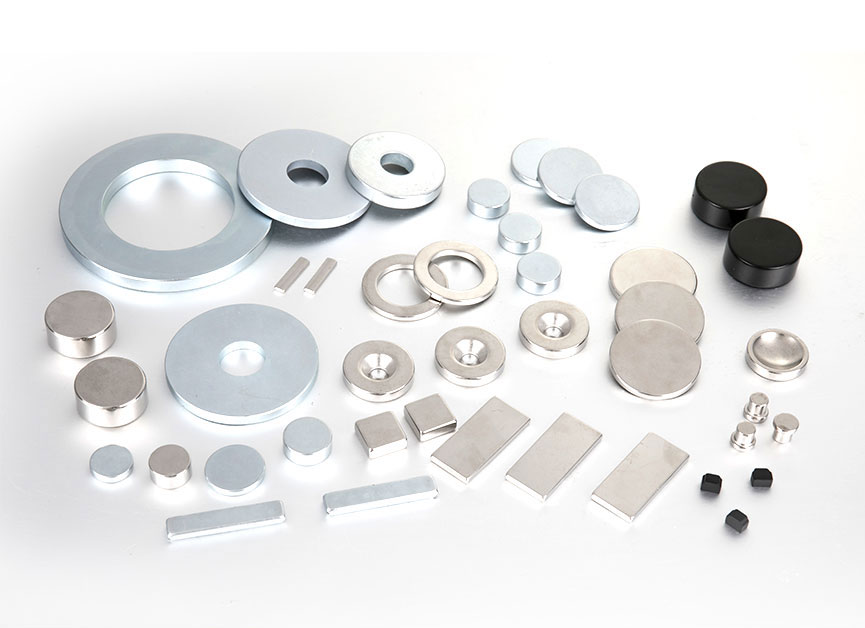

Click to visit our products:Sintered NdFeB Magnet
The type, grade, and size of the magnet in headphones directly influences sensitivity, frequency response, bass depth, transient speed, and long-term durability. This guide explains exactly how headphone magnets work, compares every major magnet type with real performance data, and answers the questions buyers, engineers, and audio enthusiasts most frequently ask.
How a Headphone Magnet Converts Electricity Into Sound
The entire acoustic output of a dynamic-driver headphone depends on electromagnetic induction — the same principle Michael Faraday demonstrated in 1831. Inside a headphone driver, the process unfolds in four steps:
- Static Field Creation: The permanent headphone magnet (typically a ring or pot-shaped structure) establishes a strong, stable magnetic field in the gap where the voice coil sits. Field strength in consumer headphone drivers typically ranges from 0.3 to 1.2 Tesla.
- Signal Input: An alternating electrical current representing the audio signal flows through the wound copper or aluminum voice coil positioned within the magnetic gap.
- Electromagnetic Force: According to the Lorentz force law, the interaction between the current-carrying coil and the static magnetic field produces a mechanical force. As current direction alternates with the audio waveform, the coil moves forward and backward at the same frequency — anywhere from 20 Hz to 20,000 Hz for audible sound.
- Diaphragm Excitation: The voice coil is bonded to a lightweight diaphragm. As the coil moves, the diaphragm displaces air, generating pressure waves that the ear perceives as sound.
The strength and consistency of the headphone magnet field determine how efficiently electrical energy becomes acoustic energy. A stronger, more uniform field allows the voice coil to respond with greater precision and speed, which translates directly to better transient response, lower distortion, and extended frequency range.
Which Types of Headphone Magnets Are Used and How Do They Compare?
There are four primary magnet types used in headphones, each with distinct magnetic properties, cost profiles, and acoustic trade-offs. Neodymium dominates modern designs, but understanding all four explains why different headphone tiers sound — and cost — so differently.
1. Neodymium Magnets (NdFeB)
Neodymium headphone magnets are the industry standard for virtually all modern headphones above entry level. Made from an alloy of neodymium, iron, and boron, they offer the highest energy product of any permanent magnet material — up to 52 MGOe (megagauss-oersteds) for the strongest grades (N52). This exceptional strength-to-size ratio allows engineers to build compact, lightweight drivers with powerful magnetic gaps. A neodymium magnet producing the same field as a ferrite magnet weighs roughly 10 times less, enabling the slim earcup profiles found in premium in-ear monitors and over-ear headphones alike.
2. Ferrite (Ceramic) Magnets
Ferrite magnets dominated headphone manufacturing from the 1960s through the 1980s. Composed of iron oxide and barium or strontium carbonate, they are inexpensive and corrosion-resistant but have a maximum energy product of only 3.5–4.5 MGOe — roughly 10 to 15 times weaker than neodymium for the same volume. This requires larger, heavier magnet assemblies to achieve comparable field strength, which is why vintage full-size headphones with ferrite magnets tend to be significantly heavier than modern equivalents. Ferrite magnets are still used in budget headphones and some large-format studio models where driver size and weight are less critical.
3. Samarium Cobalt Magnets (SmCo)
Samarium cobalt magnets occupy a performance niche between neodymium and ferrite. With energy products reaching 26–30 MGOe and exceptional thermal stability up to 300°C (versus neodymium's 80–150°C depending on grade), SmCo magnets are used in specialized professional monitors and measurement microphones where operating temperature varies widely. Their primary disadvantage is cost — samarium cobalt magnets are significantly more expensive than neodymium — which limits their adoption to high-end and professional audio equipment.
4. Alnico Magnets (Aluminum-Nickel-Cobalt)
Alnico magnets are historically significant — they were the dominant magnet type in audio transducers before ferrite became economical in the 1960s. With energy products of 1.5–5 MGOe and a characteristic warm tonal quality often described as smooth and musical, alnico magnets remain a deliberate choice in boutique and audiophile headphone drivers today. They are expensive to produce, susceptible to demagnetization if handled roughly, and offer lower field strength than neodymium, but some listeners and engineers prefer their sonic character, particularly in the midrange frequencies.
| Magnet Type | Max Energy Product | Relative Weight | Temp. Stability | Relative Cost | Primary Use |
|---|---|---|---|---|---|
| Neodymium (NdFeB) | Up to 52 MGOe | Very Light | Moderate (80–150°C) | Low–Medium | Most modern headphones |
| Ferrite (Ceramic) | 3.5–4.5 MGOe | Heavy | Good (250°C) | Very Low | Budget and vintage models |
| Samarium Cobalt | 26–30 MGOe | Light | Excellent (300°C) | High | Pro monitors, measurement |
| Alnico | 1.5–5 MGOe | Medium | Good (540°C) | High | Boutique audiophile drivers |
Caption: Side-by-side comparison of the four main headphone magnet types by energy product, weight, temperature stability, cost, and typical application in audio products.
Why Headphone Magnet Strength Directly Affects Audio Performance
A stronger headphone magnet produces a denser magnetic flux in the voice coil gap, and this has cascading effects across every measurable acoustic parameter.
Sensitivity and Efficiency
Sensitivity — measured in dB SPL per milliwatt (dB/mW) — expresses how loud a headphone plays for a given amount of power. Higher magnetic flux directly increases the force constant (BL product) of the driver, which raises sensitivity. A well-designed neodymium driver with a high-grade N48 or N50 magnet can achieve 110–120 dB/mW, meaning it can produce excellent volume from a smartphone with a relatively weak output stage. Ferrite-equipped equivalents from earlier generations often measured 90–100 dB/mW, requiring dedicated amplification to reach the same listening levels.
Bass Extension and Control
Strong headphone magnets give the voice coil a more powerful restoring force, improving control over the diaphragm's low-frequency excursions. This translates to tighter, more defined bass — less bloat, faster decay, and the ability to reproduce sub-bass frequencies (20–60 Hz) without distortion. Headphones with weaker magnetic systems tend to exhibit excessive diaphragm excursion at high SPL bass signals, which introduces second and third harmonic distortion measurable above 1% THD at 100 dB SPL. Premium neodymium designs keep THD below 0.1–0.3% across the full frequency range.
Transient Response and Imaging
Transient response — how quickly a driver starts and stops movement — is critical for reproducing the attack of percussion instruments, the pluck of a string, or the sharp onset of a spoken consonant. A stronger magnet in a headphone delivers more instantaneous force to the voice coil, accelerating the diaphragm faster and stopping it more abruptly. This manifests as sharper imaging, better separation between instruments in a mix, and a more precise soundstage in acoustic recordings. Audiophiles often describe this quality as "speed" or "resolution."
Impedance and Amplifier Matching
The BL (flux density times coil length) factor of a headphone driver — directly determined by the magnet strength — influences the back-EMF the driver generates. Higher BL values produce stronger back-EMF, which affects how the headphone interacts with the output impedance of its amplifier. This is why high-BL, low-impedance headphones (e.g., 16–32 ohm models with strong neodymium magnets) can sound noticeably different depending on the amplifier's output impedance, a phenomenon called "damping factor interaction" that is well-documented in electrical transducer engineering.
What Is a Dual-Magnet Headphone Driver and Why Is It Better?
Dual-magnet (or double-magnet) headphone drivers use two magnets arranged to push magnetic flux through the voice coil gap from both sides simultaneously, effectively doubling the usable field strength without doubling the driver diameter. This architecture is increasingly common in premium in-ear monitors and high-sensitivity portable headphones. The acoustic benefits are significant:
- Higher sensitivity from the same driver diameter — typically a gain of 3–6 dB/mW versus single-magnet equivalents of the same size.
- Better linearity across the voice coil's excursion range, reducing distortion at high SPL levels because the magnetic field is more symmetrical throughout the coil's travel.
- Improved damping of the diaphragm's resonant frequency, resulting in flatter, more controlled bass reproduction.
- Lower distortion at peak excursion — single-magnet drivers experience field weakening as the voice coil moves far from its rest position; dual-magnet designs maintain more consistent flux through the full excursion range.
The trade-off is increased manufacturing complexity and cost. A dual-magnet driver assembly requires precise alignment of both magnets relative to the voice coil gap — a tolerance measured in tenths of a millimeter — which adds process steps and quality-control demands in production.
How Headphone Magnet Technology Differs Across Driver Types
Not every headphone uses the same driver architecture, and the role of the magnet changes significantly depending on the transducer technology.
| Driver Type | Magnet Role | Typical Magnet Used | Key Acoustic Trait | Common Application |
|---|---|---|---|---|
| Dynamic (Moving Coil) | Creates gap field for voice coil | Neodymium (N35–N52) | Strong bass, high sensitivity | Consumer, sport, IEM |
| Planar Magnetic | Creates dual-sided field around membrane | Neodymium arrays | Ultra-low distortion, flat response | Audiophile open-back |
| Balanced Armature | Surrounds armature reed (no gap) | Small neodymium or SmCo | High detail, compact size | Professional IEM, hearing aids |
| Electrostatic | No permanent magnet used | None (electrostatic bias) | Extreme resolution, fragile | Reference monitoring |
Caption: Comparison of headphone driver types showing how the magnet's role, material, and acoustic contribution differ across dynamic, planar magnetic, balanced armature, and electrostatic designs.
Planar Magnetic Headphone Arrays
Planar magnetic headphones do not use a single magnet and voice coil. Instead, they embed a flat conductor trace pattern onto an ultra-thin membrane (typically 1–3 microns thick) and position two arrays of neodymium bar or rod magnets on either side of the membrane. When current flows through the printed conductor, the entire membrane surface is driven uniformly. Because every part of the diaphragm moves simultaneously — rather than a coil driving a cone from its edge — planar magnetic designs inherently produce lower distortion and more linear response, particularly in the midrange and treble. The trade-off is lower sensitivity (typically 85–96 dB/mW) and the requirement for more powerful amplification.
Why Neodymium Grade Matters: N35 vs N42 vs N52 in Headphone Drivers
Not all neodymium headphone magnets are equal. The grade number (N35, N38, N42, N48, N50, N52) directly specifies the maximum energy product of the magnet material. Higher numbers mean a denser, more powerful magnetic field from the same physical volume of magnet material.
| Grade | Energy Product (MGOe) | Residual Flux Density (T) | Relative Cost vs N35 | Typical Use in Headphones |
|---|---|---|---|---|
| N35 | 33–36 | 1.17–1.22 | Baseline | Entry-level consumer |
| N42 | 40–43 | 1.28–1.32 | +15–20% | Mid-range consumer, wireless |
| N48 | 46–49 | 1.37–1.40 | +35–50% | Premium IEM, audiophile over-ear |
| N52 | 50–53 | 1.42–1.47 | +70–90% | Flagship IEM, reference monitors |
Caption: Neodymium magnet grade comparison showing energy product, residual flux density, relative material cost, and typical headphone application for grades N35 through N52.
The performance gain from N35 to N52 is approximately 45% in energy product. In a headphone driver, this translates to a measurably stronger field in the voice coil gap, producing higher sensitivity and improved control with the same driver geometry. However, higher-grade neodymium is more brittle, more difficult to machine to tight tolerances, and significantly more expensive — which is why N52 is reserved for flagship products where cost-per-unit is less of a constraint.
Frequently Asked Questions About Headphone Magnets
Q: Can the magnet inside my headphones demagnetize over time?
Under normal use conditions, a high-quality neodymium headphone magnet will not demagnetize within the product's useful lifespan. Neodymium magnets lose less than 1% of their flux density per century at room temperature in the absence of opposing magnetic fields or extreme heat. Practical threats to headphone magnets include exposure to temperatures above 80°C (for standard grades), strong opposing external magnetic fields, and physical shock that shatters the brittle sintered material. All of these are unlikely in normal headphone use.
Q: Do headphone magnets affect pacemakers or medical implants?
This is a legitimate concern. Headphone drivers contain small but real permanent magnets with surface fields that can reach 50–200 mT at close range. The FDA recommends that pacemaker and implanted cardiac defibrillator (ICD) users keep magnetic devices at least 6 inches (15 cm) from their implant. Wearing headphones on the ears positions the drivers close to the chest only when resting the headphones there — the typical wearing position places drivers adjacent to the ears, well away from chest implants. However, users with implants should consult their cardiologist before purchasing headphones with particularly large or powerful magnet assemblies.
Q: Why do wireless (Bluetooth) headphones still need strong magnets?
Wireless transmission handles the signal pathway, but the transducer converting electrical energy into sound still requires a magnetic driver. The headphone magnet system in a Bluetooth headphone is functionally identical to that of a wired model — the audio signal simply arrives via a digital-to-analog conversion stage built into the earcup rather than through a cable. In fact, because Bluetooth headphones target portability and must produce adequate volume from limited battery power, their drivers often use especially high-grade neodymium magnets to maximize sensitivity and minimize the power drawn from the internal amplifier.
Q: Can I recycle headphones because of the magnet inside?
Yes, and the neodymium magnet is actually one of the most valuable components in a discarded headphone from a materials perspective. Neodymium is classified as a critical mineral by the EU and the US Department of Energy. Approximately 90% of the world's rare-earth processing currently occurs in a single country, creating supply chain risk that is driving investment in urban mining — recovering neodymium from consumer electronics. Proper e-waste recycling facilities can extract and re-refine the magnet material for reuse in new products.
Q: Does a bigger magnet always mean better sound?
Not necessarily. A larger magnet increases total flux, but what matters acoustically is the flux density in the voice coil gap — a product of magnet geometry, pole piece design, and gap dimensions, not just magnet volume. A smaller, well-designed high-grade neodymium (N50) magnet in an optimized motor structure can outperform a larger, lower-grade magnet in a poorly designed housing. Driver engineering is a system-level discipline; magnet grade and size are two inputs among many, alongside voice coil winding, diaphragm material, suspension compliance, and enclosure acoustics.
Q: What does "N52 magnet headphones" mean in a product specification?
When a manufacturer specifies N52 magnet headphones, they are communicating that the driver uses the highest commercially available grade of sintered neodymium magnet material. N52 refers to the maximum energy product of approximately 52 MGOe, representing the current peak of standard neodymium magnet performance. This specification is a meaningful signal of driver quality but should be considered alongside other specs — sensitivity (dB/mW), impedance (ohms), frequency response, and THD — to fully evaluate what the headphone will actually sound like in use.
Why Understanding Headphone Magnets Makes You a Better Buyer
The headphone magnet is not a marketing specification to be dismissed alongside obscure technical footnotes. It is the physical engine of every dynamic and planar magnetic headphone, and its properties set hard limits on sensitivity, distortion, transient performance, and durability that no amount of signal processing can fully compensate for.
When you understand that a neodymium N52 driver in a well-engineered housing produces a fundamentally more capable transducer than a ferrite-equipped equivalent, you are better equipped to interpret the component difference in headphone pricing. The step from a $30 entry-level model to a $150 mid-range headphone is rarely explained by brand alone — it is almost always tied to the grade of the magnet in the headphone driver, the quality of the voice coil winding, and the precision of the motor assembly.
Similarly, understanding the difference between dynamic drivers — with their single-magnet or dual-magnet structures — and planar magnetic arrays helps explain why audiophile open-back headphones with planar drivers command premium prices and require headphone amplifiers. The magnet array architecture is not a cost inflation; it is a genuinely different transducer topology with distinct acoustic properties.
As materials science advances and rare-earth supply chains diversify, next-generation headphone magnet technology — including bonded neodymium composites, advanced hot-pressed grades with higher temperature stability, and potentially new rare-earth-free magnetic materials — will continue to push the boundaries of what portable and audiophile headphones can achieve acoustically. The magnet is not a solved problem; it remains one of the most active areas of improvement in professional and consumer audio transducer design.
