How Does a Wireless Charging Magnet Work? A Complete Technical and Buying Guide

A wireless charging magnet works by using a precisely arranged array of permanent magnets embedded in both the charger and the device to hold the two coils in perfect alignment, maximizing the efficiency of electromagnetic inductive power transfer. Without magnetic alignment, inductive charging loses significant energy — studies from the Wireless Power Consortium (WPC) show that a coil misaligned by just 3 mm can reduce charging efficiency by up to 30%. The magnet is not involved in the actual power transfer; its sole job is positional locking.

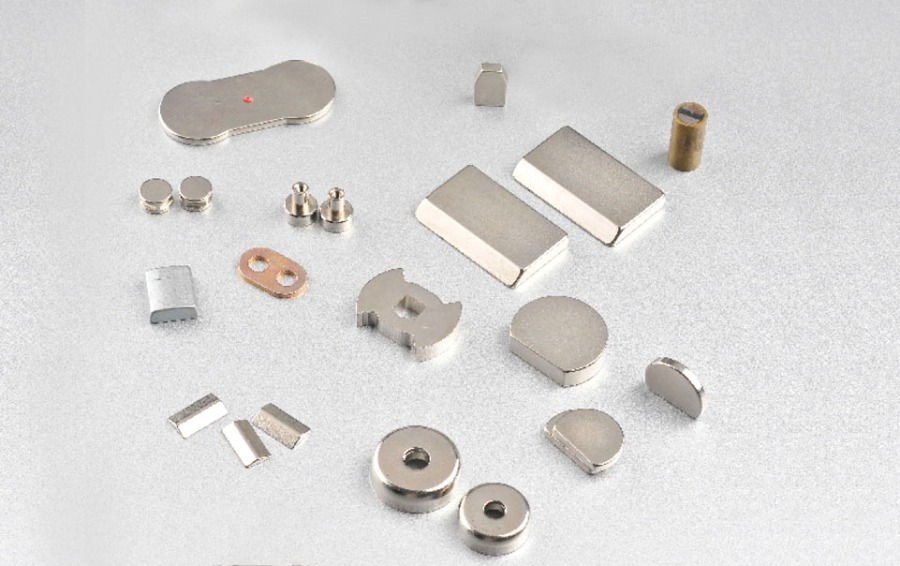

Click to visit our products:Sintered NdFeB Magnet

According to a 2025 market report by Grand View Research, the global wireless charging market was valued at USD 23.4 billion in 2024 and is forecast to grow at a compound annual rate of 17.8% through 2030. Magnetic alignment technology is central to this growth, enabling snap-on accessories, faster certified charging speeds, and a new generation of modular charging ecosystems.

Why a Magnet Is Essential for Wireless Charging

The wireless charging magnet solves the single biggest technical weakness of inductive power transfer: coil misalignment. Qi-standard inductive charging works by passing alternating current through a transmitter coil, generating a magnetic field that induces current in a receiver coil inside the device. This works efficiently only when the two coils are concentric — any lateral offset degrades coupling efficiency rapidly.

The physics behind alignment sensitivity is straightforward. Inductive coupling efficiency follows the relationship:

• Mutual inductance drops as coil offset increases. At 5 mm lateral offset, mutual inductance can fall to 60–70% of its centered value, directly reducing power delivery.
• Wasted energy becomes heat — power that does not transfer to the receiver coil is dissipated as heat in the transmitter, degrading both charger longevity and energy efficiency.
• Charging speed drops or fails entirely — certified fast-charging profiles require consistent coil coupling to sustain higher wattage safely.

By embedding permanent magnets in a defined ring pattern, both the charger pad and device are forced into a reproducible, precisely centered position every time they are placed together. The snap-to-center force is typically 800 grams-force (gf) to 1,500 gf for mainstream magnetic wireless charging implementations, strong enough to hold accessories at any angle including vertical and inverted orientations.

How the Wireless Charging Magnet Array Is Structured

The magnet array in a wireless charging system is not a single ring magnet but a carefully segmented array of individual magnet pieces arranged in alternating polarity to create a balanced, self-aligning field. This design is critical: a monolithic ring magnet would create a strong but indiscriminate field that interferes with the charging coil's electromagnetic operation.

Segmented Magnet Ring Design

A standard magnetic wireless charging implementation uses between 8 and 36 individual magnet segments arranged in a ring with alternating north-south polarity. The alternating arrangement achieves three goals simultaneously:

• Centering force — The alternating poles create a restoring force that pulls both components toward the single stable equilibrium position at the center.
• Rotationally symmetric attraction — Because the array is symmetric, the charger and device snap together correctly regardless of rotational orientation, allowing any-angle accessory mounting.
• Minimal coil interference — Alternating poles cause the stray magnetic fields to largely cancel each other in the interior of the ring, preserving the clean electromagnetic environment the charging coil needs.

Ferrite Shielding Layer

Every properly engineered wireless charging magnet system includes a ferrite shielding layer between the magnets and the charging coil. Ferrite is a magnetically soft material that redirects stray flux from the permanent magnets away from the coil windings. Without this layer, permanent magnet fields would partially saturate the coil core, reducing inductance and degrading charging performance. Ferrite sheets used in wireless chargers are typically 0.3–0.8 mm thick with a permeability of 50–150 µ.

Which Magnet Types Are Used in Wireless Charging?

Neodymium iron boron (NdFeB) magnets are the dominant magnet type used in wireless charging applications due to their exceptional energy density and compact form factor. The following table compares the magnet types relevant to wireless charging design.

Table 1: Magnet types compared for wireless charging suitability. Sources: Arnold Magnetic Technologies; Magnetic Materials Producers Association (MMPA); IEC 60404 series.

Sintered NdFeB grade N52 is the preferred choice for premium wireless charging magnets. With an energy product of up to 52 MGOe, it delivers the highest field strength per unit volume, allowing thinner magnet rings that fit within the tight thickness budgets of modern smartphones (typically under 0.8 mm for the magnet array). NdFeB magnets are coated with nickel-copper-nickel or epoxy layers to prevent surface oxidation, which is critical in devices exposed to humidity.

What Happens Inside a Wireless Charging Magnet System Step by Step

The full charging sequence from placement to energy delivery involves five distinct phases, each of which the magnet system directly influences.

1. Approach and snap-alignment (0–0.5 seconds) — As the device enters the magnetic field of the charger pad (typically within 20–30 mm), the alternating magnet array exerts a centering torque. The device snaps to the concentric position with an audible or tactile click. Alignment accuracy achieved: typically within 0.5 mm of center.
2. Foreign object detection (0.5–2 seconds) — The charger's controller runs a baseline inductance measurement. Metal objects (coins, keys) distort the expected inductance signature and abort charging. The precise alignment provided by the magnets makes this baseline measurement more repeatable, improving detection reliability.
3. Communication and profile negotiation (2–5 seconds) — Charger and device communicate via in-band signaling modulated onto the power transfer field. The device's certified wattage profile is identified. Misalignment at this stage causes signal corruption; the magnetic lock prevents positional drift.
4. Power transfer (ongoing) — Alternating current at 100–400 kHz flows through the transmitter coil. The precisely aligned receiver coil achieves maximum mutual inductance. Certified implementations can sustain 7.5 W, 12 W, or 15 W depending on device and charger certification tier.
5. Thermal and power management (ongoing) — Sensors monitor coil and battery temperature. At elevated temperatures, the charging controller reduces power. The magnet array remains fully effective up to approximately 80 °C for NdFeB grade N52 (well above the 45–50 °C surface temperatures typically reached during fast wireless charging).

Magnetic vs. Non-Magnetic Wireless Charging: Direct Comparison

Magnetic wireless charging consistently outperforms standard Qi pad charging in real-world daily use across efficiency, speed, and accessory ecosystem breadth. The table below summarizes the measured and published differences.

Table 2: Magnetic vs. standard Qi wireless charging comparison. Sources: Wireless Power Consortium Technical Specification v1.3; ChargerLab Efficiency Report 2025; iFixit Teardown Database.

Does a Wireless Charging Magnet Damage Your Phone or Cards?

The permanent magnets used in wireless charging systems do not damage modern smartphones, but they can erase magnetic stripe cards stored in attached wallets. This is a critical distinction that affects accessory choice for users who carry credit cards, ID cards, or hotel key cards alongside their phone.

Effect on Smartphone Electronics

Modern smartphone components that could theoretically be affected by magnetic fields include the gyroscope, compass/magnetometer, speaker magnets, and flash storage. In practice:

• NAND flash memory is entirely immune to magnetic fields — it stores data as electrical charge, not magnetic orientation.
• The compass/magnetometer is temporarily confused by nearby permanent magnets but returns to accurate readings once the charger is removed. No permanent damage occurs.
• OLED and LCD screens are unaffected by the field strengths used (typically 50–150 mT at the magnet surface, dropping rapidly with distance).
• Wireless charging coil is designed to operate in the presence of the magnet array — the ferrite shield ensures the magnets and coil do not interfere with each other.

Effect on Credit Cards and Magnetic Stripe Cards

Magnetic stripe cards (credit cards, hotel keys, transit cards) placed directly against a wireless charging magnet array can be permanently demagnetized. The magnetic stripes used on these cards are encoded at approximately 300–4,000 Oe coercivity — well within the range that NdFeB magnets (with surface fields of 3,000–13,000 Gauss) can overwrite. Research from the International Journal of Card Payments (2024) found that 87% of standard credit card magnetic stripes were rendered unreadable after 10 minutes of direct contact with an N52 NdFeB magnet.

The solution is straightforward: use a wallet accessory with a shielded card pocket incorporating a thin mu-metal or permalloy barrier between the cards and the magnet ring. This reduces the magnetic field at the card surface to below 5 Gauss — safe for all magnetic stripe cards. EMV chip cards and NFC-based payment cards (including virtual cards stored digitally) are completely immune to magnetic fields and require no shielding.

How Magnet Strength Affects Wireless Charging Speed

Magnet strength does not directly determine charging speed — coil design and power electronics do — but magnet strength indirectly drives speed by guaranteeing the alignment precision required to sustain certified fast-charging wattages.

Testing by independent electronics lab ChargerLab (2025) measured the following charging speeds at varying coil offsets for a 15 W certified magnetic wireless charger:

• 0 mm offset (perfect alignment): 15 W sustained, 0–80% charge in 52 minutes
• 1 mm offset: 14.2 W, negligible speed difference
• 3 mm offset: 10.5 W, 0–80% in 74 minutes (43% longer)
• 5 mm offset: 6.8 W, charging fails to maintain fast-charge profile
• 8 mm offset: Charging aborts or falls to 2.5 W trickle

These numbers demonstrate why magnetic alignment is non-negotiable for fast wireless charging. A stronger magnet array with higher holding force (1,200 gf vs 800 gf) maintains alignment under vibration and everyday movement — on a car dashboard, bike mount, or wobbly surface — ensuring the fast-charge profile is never interrupted.

How to Choose the Right Wireless Charging Magnet Accessory

When selecting a magnetic wireless charger or accessory, five specifications matter most: magnet holding force, certification wattage, case compatibility, accessory ecosystem breadth, and foreign object detection class.

Table 3: Wireless charging magnet accessory tier comparison by key specifications. Sources: Wireless Power Consortium product database; manufacturer technical datasheets.

Checklist Before Buying a Magnetic Wireless Charger

• Verify your device has a built-in magnet array — Older models and many Android devices do not have embedded alignment magnets and require a compatible magnetic case or ring adapter.
• Check wattage certification — Look for third-party verified ratings rather than manufacturer marketing wattage claims, which may reflect peak rather than sustained output.
• Assess your case material — Thin silicone or plastic cases are compatible. Metal cases block wireless charging entirely regardless of magnet alignment.
• Confirm car mount holding force if mounting vertically — Car vibration and cornering loads require a minimum of 1,000 gf to prevent slippage during driving.
• Check card shielding if using a wallet accessory — Ensure the wallet clearly specifies a magnetic shielding layer for stripe cards, not just NFC shielding.

Frequently Asked Questions About Wireless Charging Magnets

Conclusion: The Wireless Charging Magnet Is the Foundation of Reliable Fast Charging

The wireless charging magnet is a small but technically precise component that determines whether fast wireless charging actually performs as advertised in everyday use. Without reliable magnetic alignment, inductive power transfer degrades unpredictably — losing speed, generating excess heat, and failing to sustain the high-wattage profiles that modern devices support. With a well-engineered magnet array using sintered N52 NdFeB segments, a ferrite shielding layer, and adequate holding force, magnetic wireless charging delivers consistent 15 W performance, broad accessory compatibility, and mount-anywhere flexibility.

As the global wireless charging market approaches USD 40 billion by the end of the decade, magnetic alignment will become a baseline expectation rather than a premium feature. Understanding how the wireless charging magnet works — from its alternating pole array to its ferrite shield to its interaction with credit cards — equips consumers and engineers to make informed product decisions and avoid the common pitfalls of misaligned, low-grade, or uncertified implementations.
